KVM switch combines LCD monitor, keyboard, and 16 port monitor keyboard mouse switch

SMK590 rack console monitor keyboard mouse switch enables you to control large computer networks using a single keyboard, monitor, and mouse. On a single video screen, you can select as many as 128 computers running different operating systems. The 16-Port KVM switch use an On-Screen Display (OSD) interface and pushbuttons on the keyboard for accessing each attached computer. Additional KVM switch can be connected to the primary switch, called daisy chaining, to increase computer access from 16 computers to as many as 128 computers. Daisy chaining KVM switch units allows you to modify your Server Console Switch system, as your network system needs change.

Designed to effeciently utilize expensive rack space, the SMK-590 monitor keyboard mouse switch series rack console is a 1U slide-out keyboard tray that provide a combination of a flip-up LCD monitor, keyboard, mouse, and KVM switch in a space-saving clamshell design. Each monitor keyboard mouse switch is constructed of heavy duty metal for ruggedness. Ball-bearing slide rails let you effortlessly pull out the keyboard tray to access the LCD and keyboard for operation. The LCD monitor flips up for use and folds down for storage.

Portable Computer

Touch Panel PC

Rack Console

Rack Mount LCD

Support

What's New

Monitor Keyboard Mouse Switch with 17" LCD

SMK-590S17 Rack Console, 16-port KVM Switch

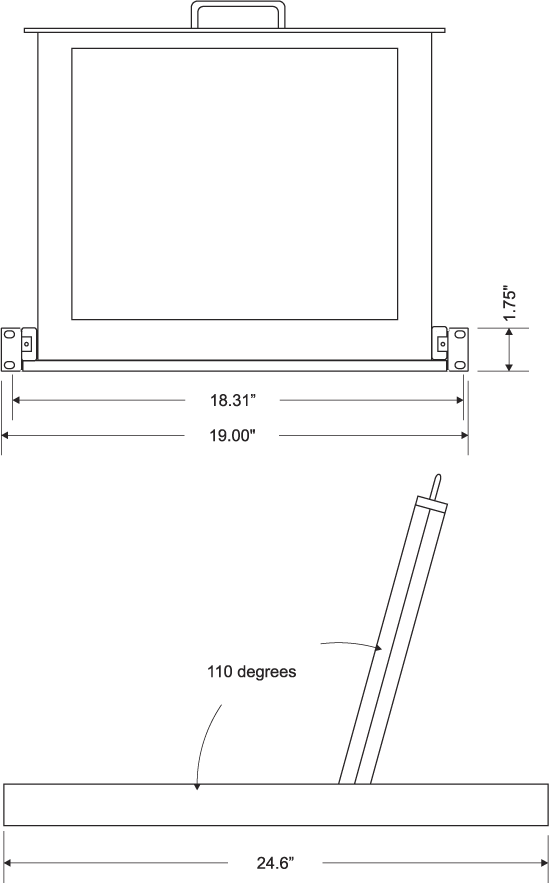

SMK-590 series dimensional drawing

LCD monitor keyboard mouse switch SMK-590 KVM switch

Selection Guide

Lead Time

  • This item usually ships in approximately 2~3 days.
