Rackmount LCD console drawer with 16 port keyboard video mouse switches and 19 inch LCD monitor

SMK-590S19 with 16-port keyboard video mouse switches and a 19 inch, high contrast ratio, fast response, wide viewing angles LCD monitor enables you to control large computer networks using a single keyboard, monitor and mouse.

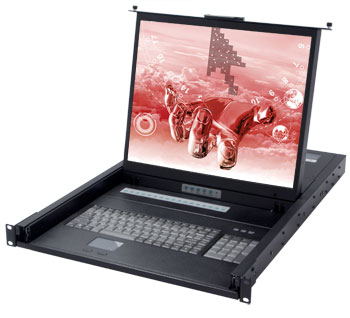

SMK-590S19 is a 1 rack unit, rackmount, slide-out keyboard drawer that provide a combination of a flip-up LCD monitor, keyboard, and 16-port keyboard video mouse switches in a space-saving clamshell design. Ball-bearing slide rails let you effortlessly pull out the keyboard tray to access the LCD and keyboard for operation. The LCD monitor flips up for use and folds down for storage.

Portable Computer

Touch Panel PC

Rack Console

Rack Mount LCD

Support

What's New

Keyboard Monitor Switch with 19" LCD Monitor

SMK-590S19 Rack Console, 16-Port Keyboard Monitor Mouse Switch

keyboard monitor switch SMK-580S19 keyboard monitor mouse switch with 19 inch monitor

The SMK-590S19 keyboard monitor mouse switch combines a flat panel LCD monitor, keyboard and touchpad mouse in a single functional unit. Its clamshell design uses a flip-up TFT monitor to save valuable rack space. And since in a typical data center, server racks consist of several different computer systems, it is important that they can be administered from a central console. This is where the keyboard monitor switch can prove invaluable, since it enables the keyboard, monitor and mouse to be switched between the various individual computers.

The keyboard monitor mouse switch supports operating systems such as DOS, Win3.x, Win95/98/2000/ME/XP, WinNT, Netware, SCO Unix, HP Unix, Linux.

Pointing devices compatible with Microsoft Mouse are supported.

Works with COTS keyboard, VGA, mouse cables.

The SMK-590S19 16-port keyboard monitor switch is a convenient solution for controlling multiple computers. This single unit combines a 16-port KVM switch, keyboard, 19" LCD monitor and touchpad — all in a mere 1U of rack space. The keyboard monitor mouse switch lets you control up to 128 PCs or servers by daisy-chaining additional KVM switches. The SMK-590S19 keyboard monitor switch supports hot plugging of systems and features auto-scanning of connected systems and systems on daisy chained installations. It has an 8-character password security feature that ensures only authorized users can view and control connected PCs or servers. The convenient and easy-to-operate KVM switch controls all ports using hotkeys or the mouse-driven OSD (On-Screen Display) menus.

The keyboard monitor mouse is mounted on slide rails so you can easily pull out the unit from your equipment rack. The keyboard tray slides out for LCD and keyboard access and remain hidden when not in use. A large 19 inch SXGA high resolution LCD monitor so more information can be displayed on-screen. And with its 1000:1 contrast ratio, you'll be able to distinguish the subtle shades of color or gray in your graphics images. The LCD's lower power consumption and EMI free technology makes it ideal for industrial applications. An on-screen display (OSD) menu using four control buttons let's you adjust the display for optimum viewing.

The entire LCD monitor keyboard drawer is constructed of metal for ruggedness. The slide-out keyboard tray is shipped with ball-bearing slide rails already attached to the unit. Rack mounting brackets can be extended up to 38.75", accomodating a wide range of equipment racks with different depth.

Lead Time

  • This item usually ships in approximately 2~3 days.
