Rack Console with 16-port Console Switch
SMK-490WX17 with Widescreen LCD Monitor and 16-port Keyboard, Video, Mouse Switch
- 16-port keyboard, video, mouse switch.
- Flip-up widescreen flat panel LCD monitor with anti-glare tempered glass for added protection.
- 16:10 aspect ratio, 17" WXGA optimum resolution @ 1280 x 768 pixels.
- 600:1 contrast ratio, 450 nits brightness LCD.
- Integrated auto-scan, hot-pluggable 16-port KVM switch.
- 200 MHz bandwidth, high quality video switching supporting up to SXGA (1280x1024) resolution.
- Easy access control buttons for KVM switch and LCD on-screen-display menu.
- Ball-bearing slideout rails with locking clip.
- Adjustable mounting brackets; 20" to 35".
- One rack unit high clamshell design.
The console switch supports DOS, Win3.x, Win95/98/2000/ME/XP, WinNT, Netware, SCO Unix, HP Unix, Linux.
Using an USB-PS2 adapter, the KVM switch also supports iMac, Power Mac and Sun Microsystems.
Cascading port lets you connect additional KVM switches.
Pointing devices compatible with Microsoft Mouse are supported.
Provides high video quality; up to 1920x1440 resolution, 200 MHz bandwidth.
In the PC world, a wide XGA (WXGA) LCD refers to several modes of wide aspect ratios one of which supports 1280x768 pixels resolution. This gives you an approximately 16:10 aspect ratio display. Comparing WXGA to XGA's 1024x768 resolution, you get 25% more display area.
Widescreen LCD Rack Console with 16 port Console Switch

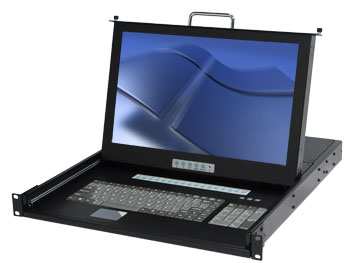

The SMK-490WX17 is a rack console featuring a combination of a widescreen, flip-up LCD monitor, keyboard, mouse, and 16 port console switch in a space-saving clamshell design. The SMK-490WX17 is designed to be installed in a standard, 19-inch rack configuration. The LCD monitor flips up for use and folds down for storage.
Widescreen TFT LCD Provides More Display Area
The SMK-490WX17 rack console includes a high brightness, high contrast ratio, 17 inch widescreen flat panel LCD monitor. Its 1280 x 768 pixels resolution provides approximately a 16:10 aspect ratio display. And with 600:1 contrast ratio, a level approaching that of CRT monitors, you can judge your work more accurately because subtle shades of color or gray in your graphic images become visible. The widescreen LCD monitor provides more screen area for your applications. The WXGA display provides 25% more pixels than XGA resolution. The increased screen resolution has a direct impact on productivity, because now you can show more of your data, images, spreadsheet with less scrolling.
Short Depth Rack Mount Drawer Also Accomodates Wide Range of Rack Configurations
The entire LCD monitor keyboard rack console is constructed of metal for ruggedness. The slide-out panel and keyboard tray is shipped with ball-bearing slide rails already attached to the unit. Rack mounting brackets can be extended from 20.0" up to 35.4" accomodating a wide range of equipment racks with different depth.
User Friendly 16-port Console Switches
In a typical data center server racks consist of several different computer systems, it is important that they can be administered from a central console. This is where the console switch can prove invaluable, since it enables the rack console to be switched between the various individual computers.
The SMK-490WX17 16-port console switch is a convenient solution for controlling multiple computers. The console switch lets you control up to 128 PCs or servers by support cascading of additional 8-port or 16-port KVM switches. The console switch supports hot plugging of systems and features auto-scanning of connected systems and systems on cascaded installations. It has an 8-character password security feature that ensures only authorized users can view and control connected PCs or servers. The convenient and easy-to-operate console switch controls all ports using hot-keys or the mouse-driven OSD (On-Screen Display) menus.
