MPC-1735 triple screen portable workstation fits in air traveler carry on luggage. Computer forensics tool, forensics workstation.

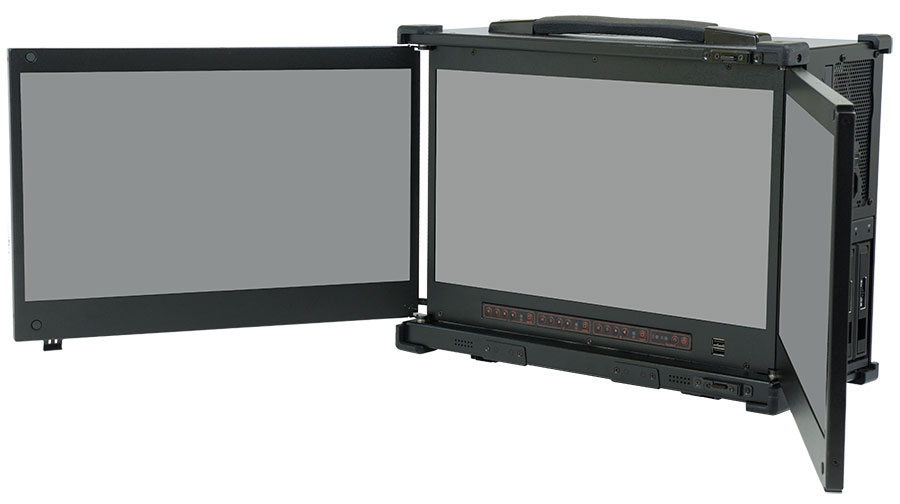

Triple Screen Portable Workstation Fits in Carry-on Luggage

Designed for the air travelers in mind, the MPC-1735 is a rugged portable workstation featuring three LCD screens, up to two PCIe video cards, terabytes of storage capacity, all in an enclosure that fits in a carry-on case.

Don't take the chance of lost productivity or loosing your data to damage, delay when you travel by air. You can store the MPC-1735 workstation under the seat and in the overhead bin of an aircraft.

Perfect for data aquisition, digital forensics, sales and support professionals who need powerful computing in the field, the MPC-1735 has three wide-screen 17.3” LCDs, 1920x1080 resolution per screen. It's powered by a multi-core desktop or server-class processor, GPUs with 1000+ streaming cores/CUDA processors for floating-point calculation intensive applications.

MPC-1735 fits under the seat and in the overhaed bin of airlines. It fits in an carry on luggage, has expansion slots for add-in expansion cards. A mobile rack lets you install four SATA hard disks. Designed for computer forensics professional.

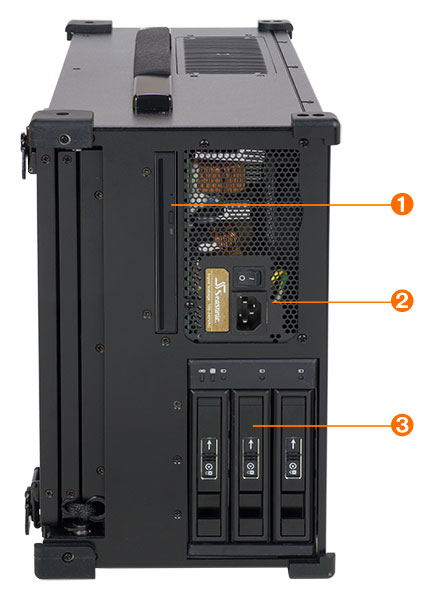

MPC-1735 External Features

The MPC-1735 t takes advantage of COTS (commercial-off-theshelf) PC components for its substantial expansion and upgrade capabilities. On the right side of the enclosure, you'll find:

1. Space for a slim type optical drive. You may choose DVD burner, DVD RW Blu-ray R combo drive or Blu-ray burner.
2. 80-Plus active PFC modular power supply.
3. Main disk drive bays for two 5.25" drives. In this photo we've installed an optional "mobile rack" that supports three 3.5" hard drives. You may select two 5.25" devices, or a mobile rack with eight removable 2.5" hard disk trays.

MPC-1735 is designed for air travelers to pack in carry-on luggage. It uses COTS PC parts, has multiple LCDs and supports digital forensic PC add-on.

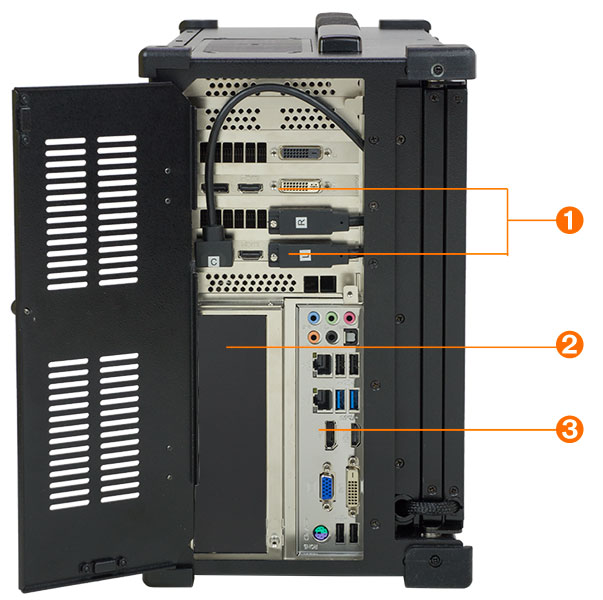

MPC-1735 External Features

The motherboard and expansion slot I/O are located on the left side of the enclosure. You'll find:
1. Expansion card I/O. In this photo two double-width video cards have been installed. The MPC-1735 uses video outputs from DVI, HDMI or mini-DisplayPort to drive the LCDs.
2. A 5.25" drive bay for add-in devices. This drive bay supports devices with maximum length of 8.5".
3. Motherboard I/O panel (I/O ports various depending on installed motherboard).

You can carry the MPC-1735 with you in a commercial airline because it fits in carry-on luggage, can be stored under the seat and in the overhead bin. Forensic PC, forensics computer, forensic workstation for e-discovery professional working in the field

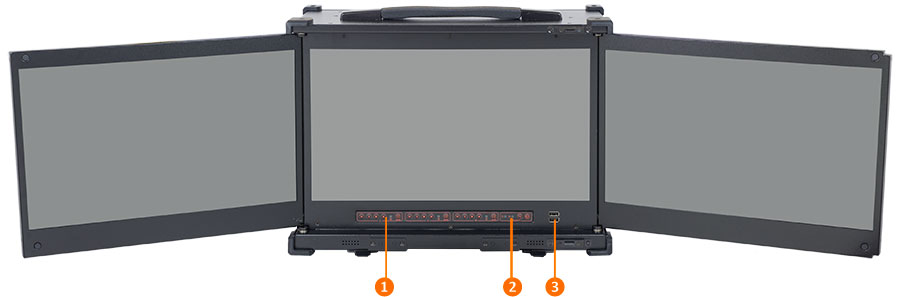

MPC-1735 External Features

1. LCD adjustment buttons. Each LCD screen is individually adjustable with its own on/off switch and on-screen-display menu.
2. Power on/off switch, reset, system status indicator LEDs.
3. USB ports. Use it for keyboard, mouse (MPC-1735 does not come with integrated keyboard and pointing device) and other USB devices.

MPC-1735 multiple-screen portable workstation fits in carry on luggage

MPC-1735 External Features

1. Two 8 cm case fans.
2. Ventilation openings over expansion slot area of motherboard.
3. One 8 cm case fan.

Rugged system chassis constructed of aluminum alloy.
Integrated LCD.
Rubber bumpers on corners.
Rubber-clad carrying handle.
Tilt-up feet under chassis and keyboard.
Built-in speaker.
Three 8cm cooling fans.

* Note: MPC-1735 does not include keyboard or mouse. You can find a wide range of tethered or wireless input devices online. There are many mini keyboards that will fit in a carry-on bag along with the MPC-1735.

Enclosure Construction

Three 17.3” LCD monitors with LED backlight.
1920x1080 resolution per screen.
Independently adjustable monitor brightness, contrast.
Backlight on/off switch for each screen.
Luminance: 300 nits.
Contrast Ratio: 400.
Response Time: 8ms typical.
Supported Colors: RGB 6-bit, 252K colors.
Viewing Angles (U/D/L/R): 60/60/70/70.

Flat Panel Displays

Total of three 5.25" drive spaces. A double 5.25" space on the right is used to install removable disk drive racks. A single 5.25" space on the left.
One slim optical disk drive bay.

Storage Space

17.4” (W) x 13.5” (H) x 8.25” (D) with LCD panels closed. (height includes handle; depth includes extrusion of the LCD latches).
47.7” (W) x 13.5” (H) x 8.25” (D) with left and right LCD panels open.
System weight: approximately 32 lbs.
Shipping weight: approximately 35 lbs (actual weight depends on system configuration).

Physical Specs

Input: AC 100 ~ 240 V, 50 ~ 60 Hz, full range (PFC).
Output: 650 watt power supply standard; upgrades available.

Electrical and Power

Temperature: Operating—0~50 °C (32~122 °F); non-operating— -20~60 °C (-4~140 °F).
Humidity: 5~95% @ 40 °C, non-condensing.
Altitude: Operating—15000 ft. Non-operating—40000 ft.
Shock: Operating—half-sine wave @ 15 G, 11 ms duration on ±x, ±y, ±z directions, 3 times per face, @ 20°C, 65% RH. Non-operating—half-sine wave @ 50 G, 11 ms duration on ±x, ±y, ±z directions, 3 times per face, @ 20°C, 65% RH.
Vibration: Operating—20-60 HZ, 0.075 mm sine wave sweep in XYZ directions for 0.5 hrs @ 20°C, 60% RH. Non-operating—10-50 Hz, 0.15 mm sine wave sweep in XYZ directions for 0.5 hrs. @ 20°C, 60% RH.

Environmental and Safety

Base Configuration

  • Enclosure
  • MPC-1735 portable chassis without keyboard.
  • Three 17.3" LCD screens, 1920x1080 resolution each.
  • Transport case.
  • Motherboard
  • Intel Z390 chipset LGA 1151 motherboard.
  • Processor
  • Intel Core i7-9700 Coffe Lake 3.0GHz 8-core processor.
  • Main Memory
  • 16GB dual channel DDR4 DRAM installed.
  • Graphics
  • GeForce GTX-1050 2GB graphics card.
  • LAN Connectivity
  • One 10/100/1000Mbps LAN controller.
  • Storage Device Controller
  • 6 x SATA 6Gb/s ports.
    1 x M.2 slot (Key M) supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280/ 22110 storage devices.
  • Installed Storage Devices
  • One 250GB SSD.
    One slim-type DVD +/- RW optical disk drive.
  • Audio
  • Realtek ALC892, 7.1 channels audio.
  • Input/Output
  • 1x PS/2 mouse/keyboard port.
    1x DVI port.
    1x VGA port.
    1x DisplayPort.
    1x USB 3.1 Type-A port.
    1x USB 3.1 Type-C port.
    2x USB 3.0 ports
    1x RJ-45 LAN port.
    7-channel audio I/O ports (5+1 audio jacks).
  • Expansion Slots
  • 2 PCI-E 3.0 x16 slots.
    2x PCI-E 3.0 x1 slots.
    1x M.2 slot with E key for Integrated Intel® Wireless-AC(CNVi) module only.
  • Operating System
  • No installed operating system.
  • Power Supply
  • 650-watt.
  • Price as Configured: $5600

Request Price Quotation With Other Options

Use this form to select your desired components for your MPC-1735 portable workstation. If the options don't address all of your requirements, please use the message field of the form to ask for options not available here. Options you select may require a different motherboard from that of the Base Configuration.

Note:

This is a build-to-order, noncancelable system and usually takes 4 - 6 weeks to ship after we receive your order.



Select Processor
Select Amount of Memory
Select Graphics Controller
Connectivity Options
Storage Options
Optical Disk Drive
Expansion Slots
Additional Input/Output Controllers
Select Operating System

Please let us know how to contact you.

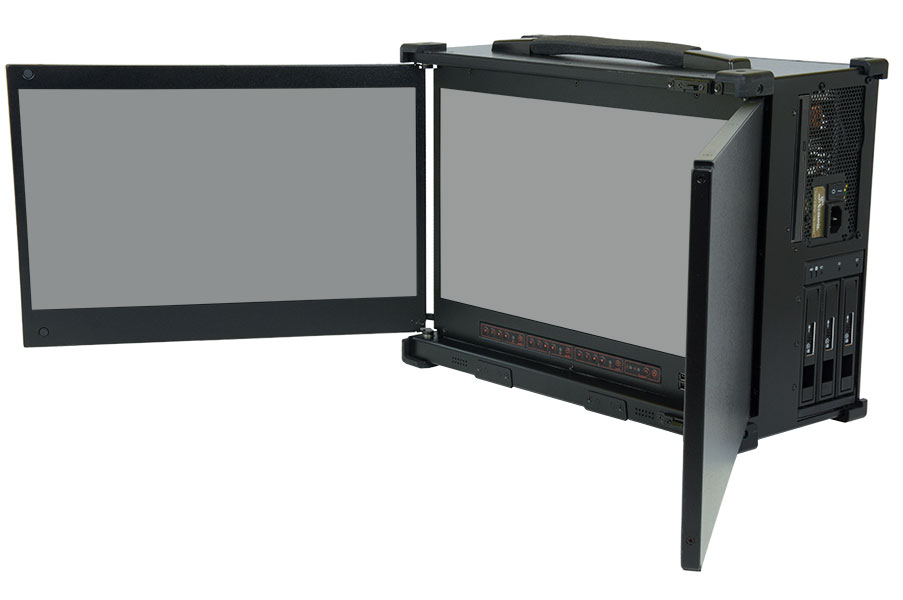

mpc1735_gallery1

  • MPC-1735 triple screen portable computer for digital forensics professionals in the field
  • MPC-1735 external dimensions are airline carry-on compliant and fits in carry-on baggage

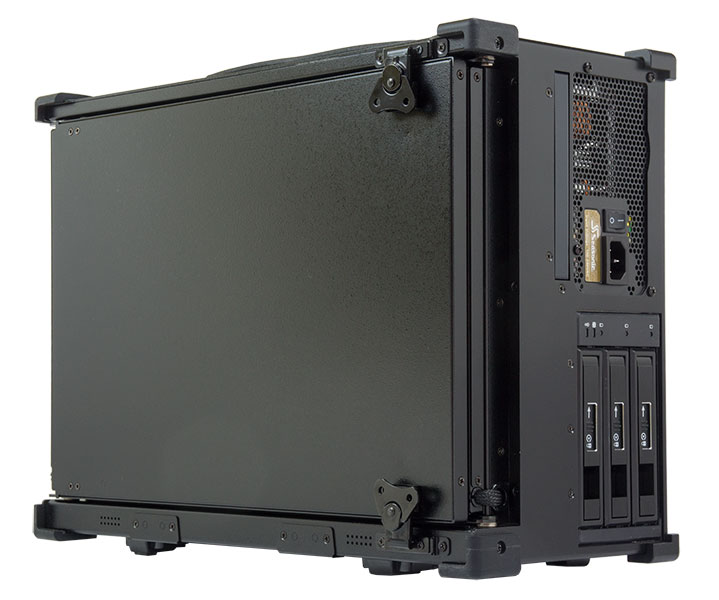

    MPC-1735 system enclosure details.
  • MPC-1735 multiple screen portable computer has 1000 plus streaming processors or CUDA processors
    MPC-1735 system enclosure details.
  • MPC-1735 hardware for work in the digital forensics, e-discovery fields.

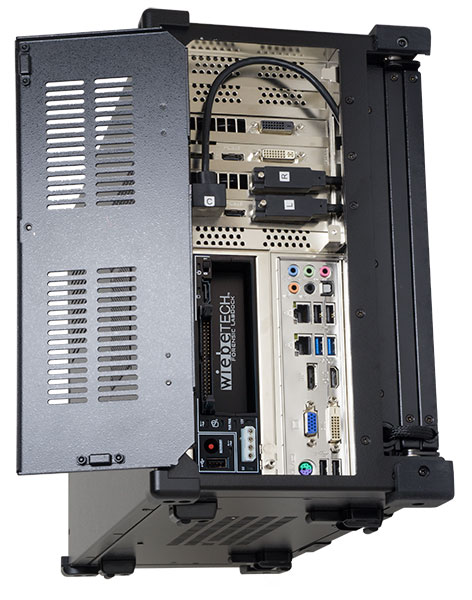

    MPC-1735 computer forensics configuration with write-blocker and dual graphics cards.
