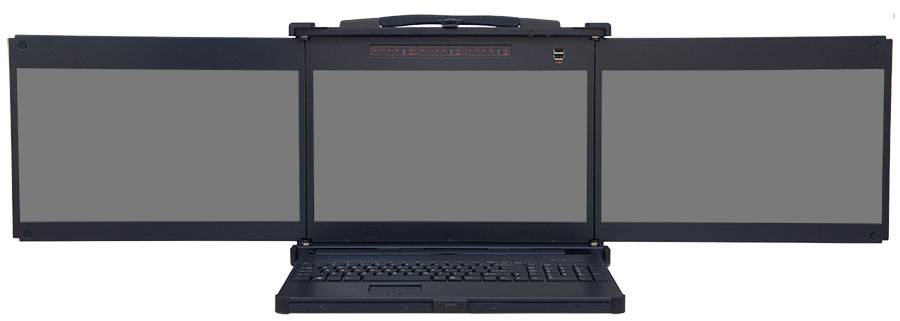

PMK-1730 is a ruggedized portable three-screen display setup.

Portable Triple Screen and Keyboard

The PMK-1730 combines three LCD screens and a keyboard/touchpad in a portable and ruggedized enclosure. It's a perfect solution for bringing a triple-screen setup with you anywhere you go.

The three-screen setup consists of three 1920x1080 resolution 17.3" LCDs. They fold in for transport and fold out when in use. You can set up the displays as three independent desktops or as a single desktop with 5760x1080 resolution. Each screen has its own on-screen display (OSD) menu controls that let you adjust the displays for optimum viewing.

PMK-1730 is a portable multi-display that you can take anywhere you go.

PMK-1730 External Views

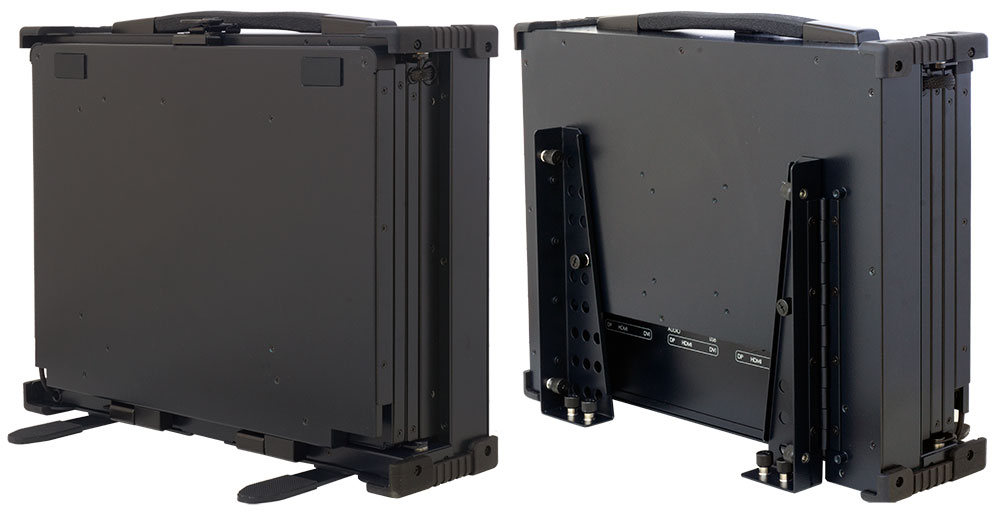

The PMK-1730 chassis is constructed of aluminum. Rubber clad corners and tempered glass protected LCDs provide ruggedness during transport and in the field. The entire unit is less than six inches in depth when the LCDs and keyboard are folded in for transport. Swing out feet and back support fixture offer stability when the unit is setup for use.

PMK-1730 triple screen let you take a three-screen setup anywhere you go.

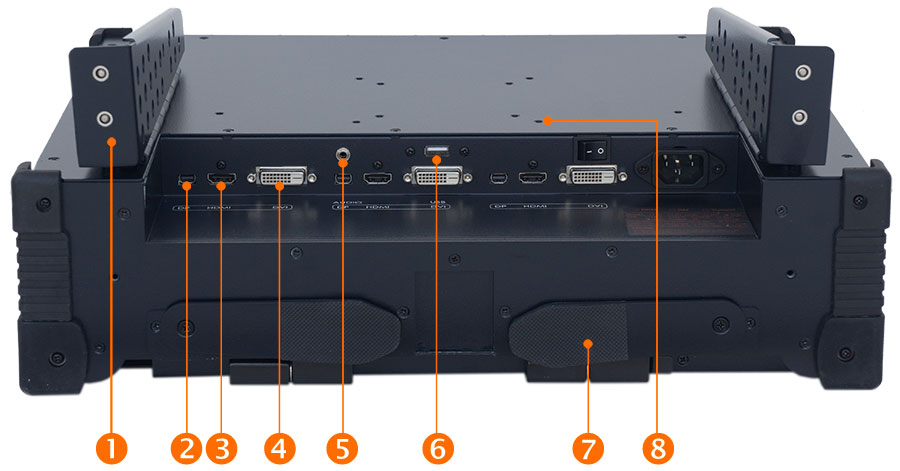

PKM-1730 Inputs

Each LCD on the PMK-1730 has three video inputs offering flexible configuration with your video output device.

1. Back support fixture (designed to attach the PMK-1730 to our three-screen portable workstation MPC-1730). They can be swung out to provide stability when the unit is used as a stand-alone three-screen display.
2. mini-DisplayPort.
3. HDMI port.
4. DVI port.
5. Audio-in jack.
6. USB port for keyboard and touchpad.
7. Swing out front feet.
8. 75mm and 100mm VESA mounting holes.

Rugged chassis constructed of aluminum alloy.
Desktop standing and VESA mounting.

Construction

Three 17.3” LCD monitors with LED backlight.
1920x1080 resolution per screen.
Independently adjustable monitor brightness, contrast.
Backlight on/off switch for each screen.
Luminance: 300 nits.
Contrast Ratio: 400.
Response Time: 8ms typical.
Supported Colors: RGB 6-bit, 252K colors.
Viewing Angles (U/D/L/R): 60/60/70/70.

Flat Panel Display

17.32” (W) x 14.0” (H) x 5.7” (D) with LCD panels closed.
47.66” (W) x 14.0” (H) x 5.7” (D) with left and right LCD panels open.
Weight: 23 lbs.
Shipping weight: approximately 45 lbs.

Physical Specs

Input: universal 100 ~ 240 Vac / 47 ~ 63 Hz Input.

Electrical and Power

Operating temperature:32 ~ 122°F
Storage temperature: -40 ~ 158°F
Humidity: 10% ~ 90% non-condensing.

Environmental and Safety

pkm1730 three-screens

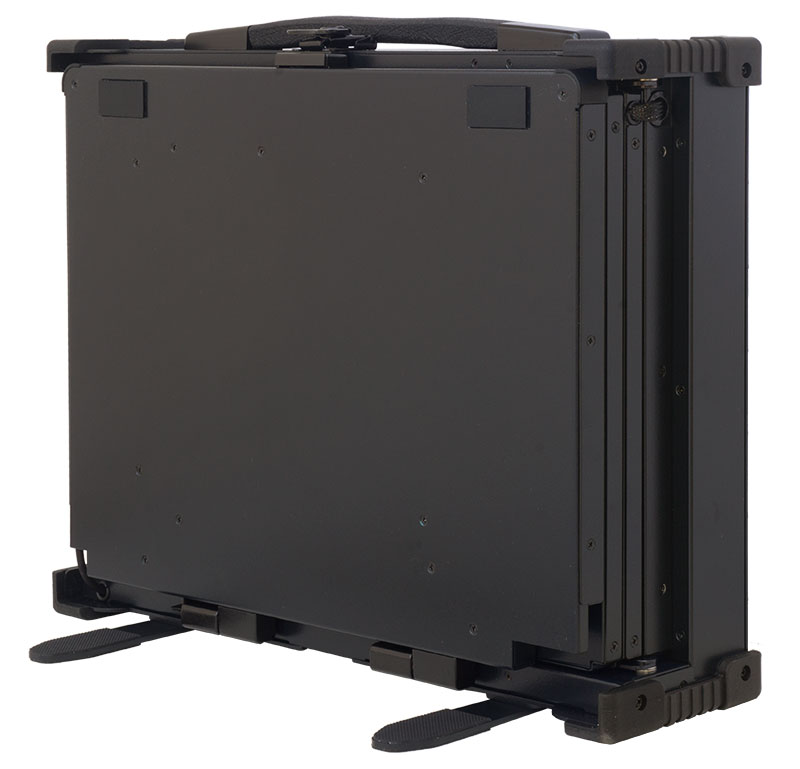

  • pkm1730_gallery1
  • pkm1730_gallery2

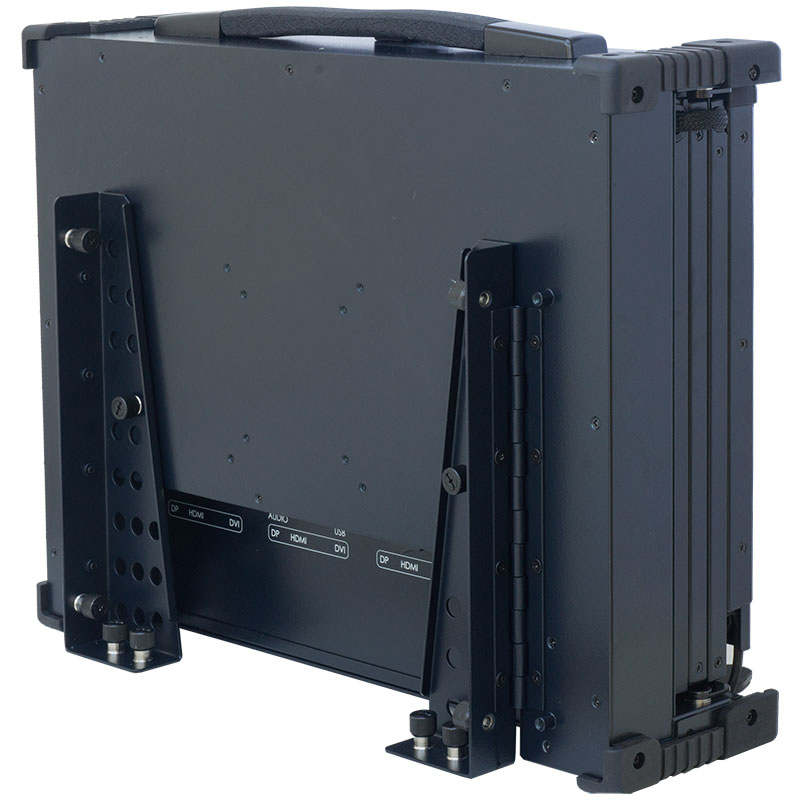

    Back side view.
  • pkm1730_gallery3

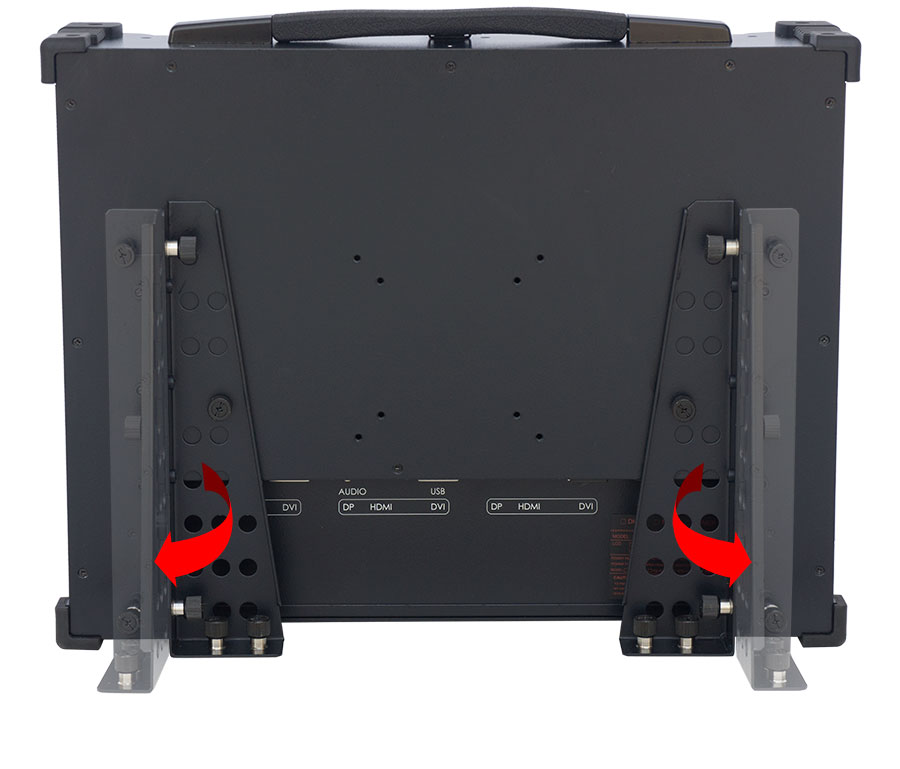

    Support fixture.
  • pkm1730_gallery4

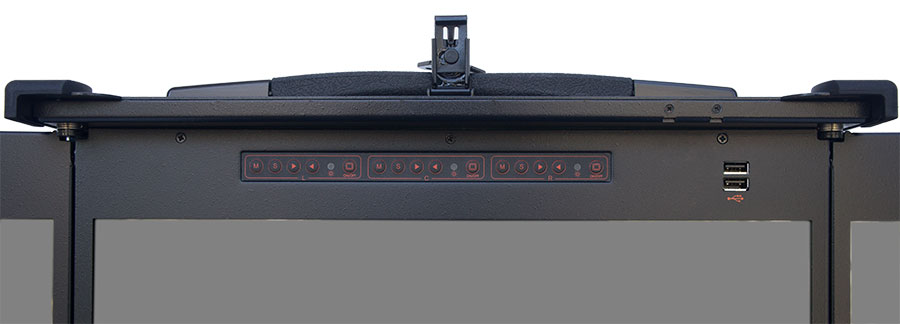

    Front bezel controls.
  • pkm1730_gallery5

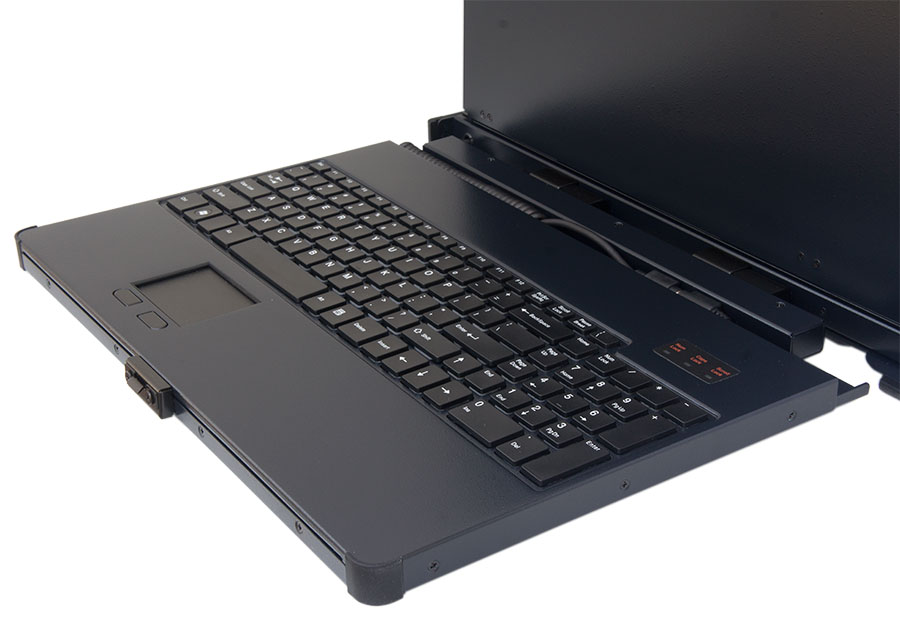

    Keyboard and touchpad.
  • pmk1730_gallery7

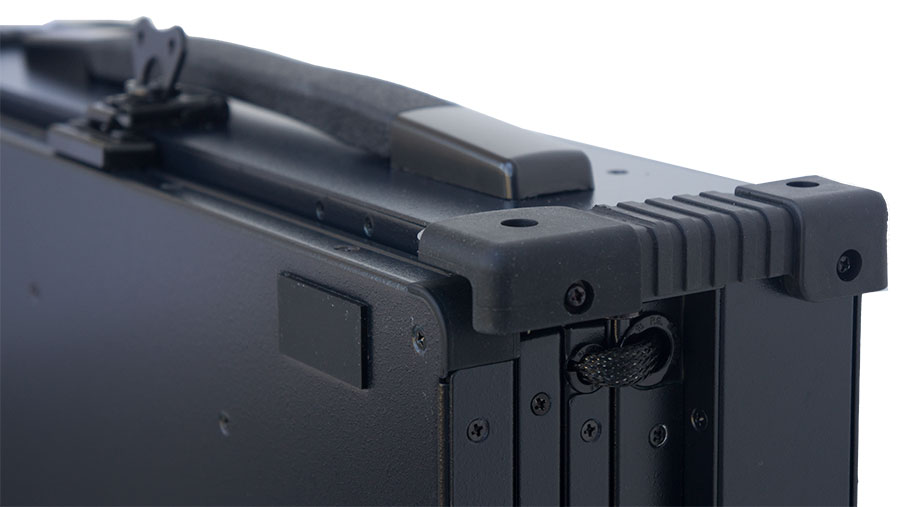

    Rubber clad corners.
  • pkm1730_gallery6

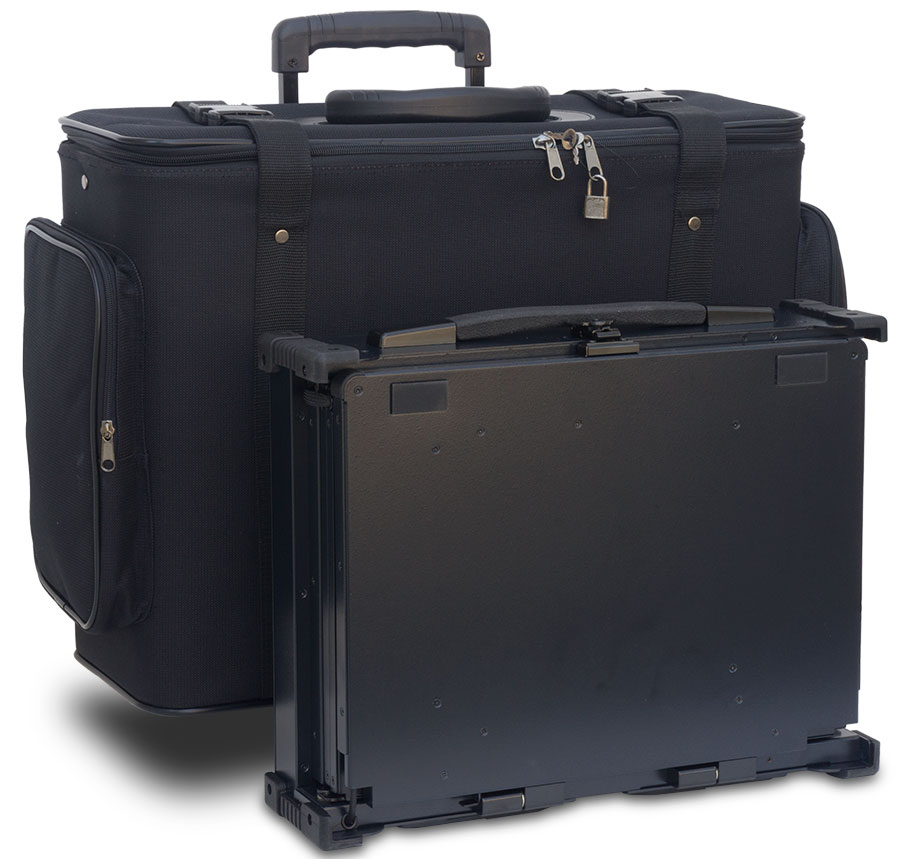

    PMK-1730 with transport case.

Request Price Quotation

Use this form to request a quotation for the PMK-1730.

Quantity

Please let us know how to contact you.



How To Buy

Contemporay MicroSystems accepts the following payment methods:

  • Purchase Orders—We accept academic, research institution, local, state and federal government agencies, and corporate purchase orders. Standard terms is net 30.
  • Credit Cards—We accept payment with credit cards. Please call (626)487-7034 to order. Visa, Mastercard, American Express are accepted. We do not accept international credit cards at this time. However, if you reside outside of the United States and Canada, you can email us your purchasing and shipping requirements. We'll prepare a proforma invoice as acknowledgement.
  • Resale discounts are available. Please send your request using the Request Price Quotation form. To qualify for reseller discount, a resale certificate/permit/ID is required.

Lead Time

This product usually ships within 5 business days after we receive your order.

Price (QTY One)

PMK-1730: $2500.00
