MPC-1700 ruggedized portable computer uses COTS PC components

Mobile Computing Solution in a Rugged Portable Package

The MPC-1700 is a portable workstation designed to pack desktop PC performance in a portable package. Its spacious internal layout supports an ATX motherboards, commercial-off-the-shelf power supply and five drive bays.

The MPC-1700 comes in a road-ready lunchbox style portable enclosure. The rugged computer chassis is constructed of 2.2mm aluminum alloy. The keyboard folds out for use and includes a touchpad mouse. A 650-watt ATX power supply is standard, and a luggable carry case with wheels let you transport the system over long distances.

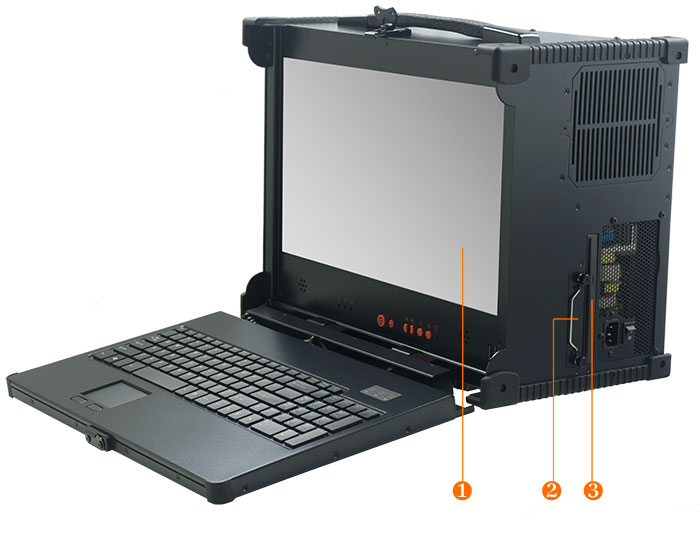

1. 17.3" wide screen LCD with LED backlight, 1920x1080 resolution. Supports DVI or VGA inputs.
2. Removable hard drive tray for a 2.5" SATA hard disk or SSD.
3. Slim type optical disk drive bay (optical drive is optional).

Rugged MPC-1700 portable computer supports quad-core, six-core, eight-core CPU

Portable Computer with Slots

The MPC-1700 supports industry standard motherboards—ATX, Micro-ATX and Mini-ITX form factors. This means the latest PC desktop and workstation technologies are readily available.

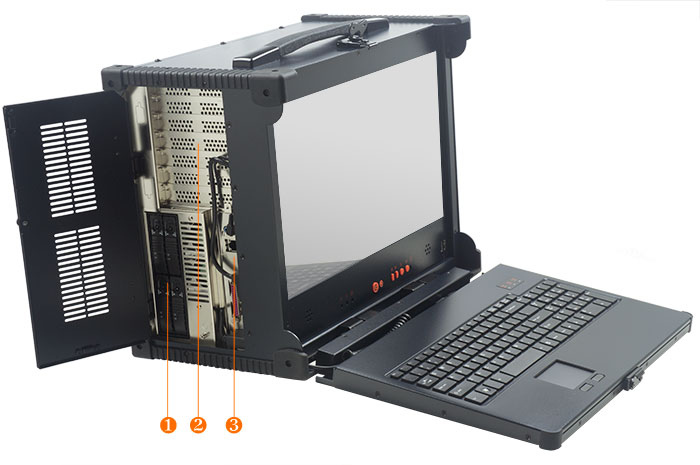

1. 5.25" drive bay (picture shows an optional 4-bay mobile rack that supports four 2.5" SATA hard drives).
2. Expansion slots—up to seven slots depending on installed motherboard.
3. Motherboard input/output ports.

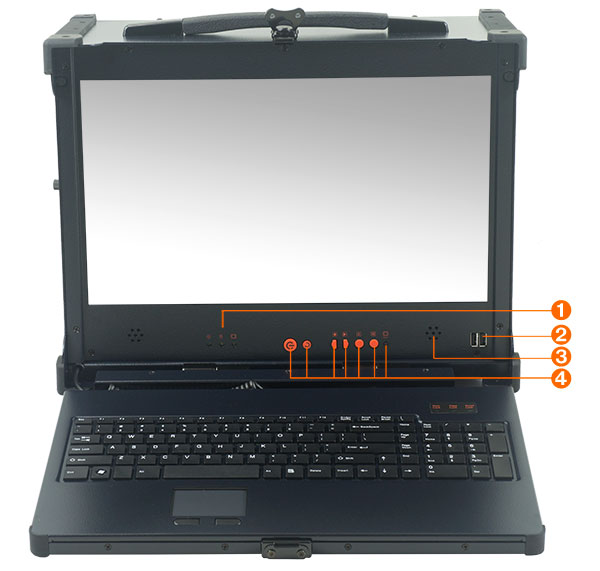

Ruggedized portable computer MPC-1700 has a 17.3 inch high definition LCD

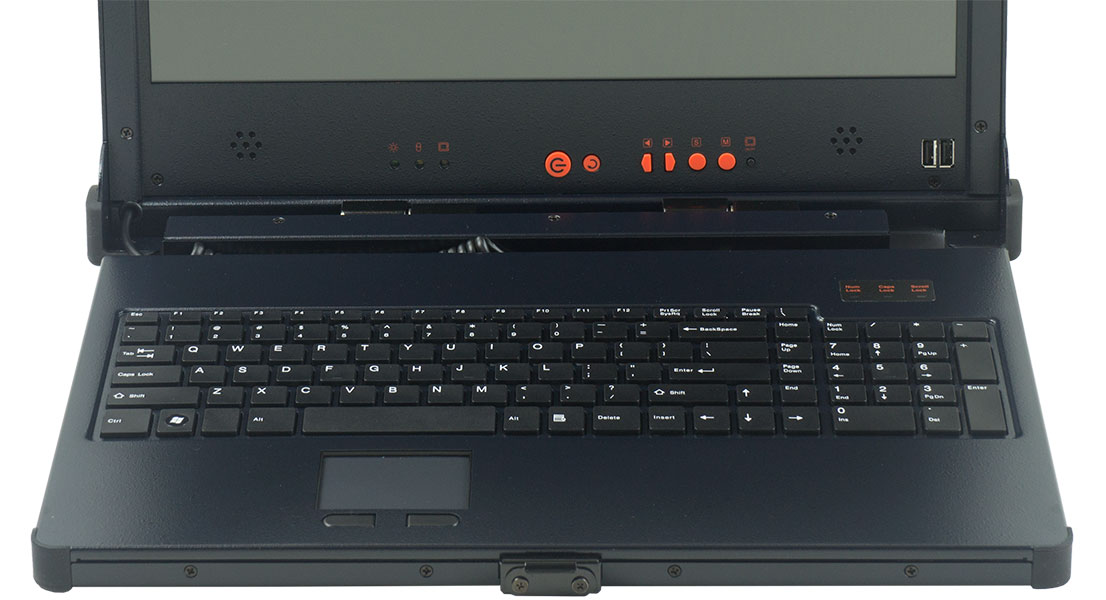

Front Bezel Features

Use the front bezel controls to turn on/off your computer and access the on-screen-display menu to adjust the LCD.
1. Computer status indicator LEDs.
2. USB ports (connected to motherboard USB headers).
3. Speakers (connected to speaker-out audio port of motherboard).
4. Power on/off, system reset, LCD menu control buttons.

Rugged portable computer MPC-1700 includes a transport case

A Transport Case is Included

MPC-1700 comes with a soft transport case with wheels and telescopic handle.

Portable system chassis constructed of aluminum alloy.
Integrated flat panel display and fold-down keyboard.
Rubber bumpers on corners.
Rubber-clad carrying handle.
Tilt-up feet under chassis.
Built-in speaker.
Detachable keyboard with integrated touchpad pointing device.
Two 12 cm cooling fans.

Enclosure Construction

17.3" LCD, 1920 x 1080 resolution.
Supports DVI or VGA inputs.
Contrast Ratio: 300:1.
Brightness (cd/m²): 400.
Backlight: LED.
Response Time (ms): 8ms.
View Angles (U/D/L/R degrees): 60/60/70/70.
Color depth: RGB 6-bit, 252K colors.

Flat Panel Display

One 5.25" drive bay.
One 2.5" removable disk drive bay.
Two internal 3.5" disk drive bays.
One slim optical disk drive bay.

Storage Space

Enclosure dimensions: 17.5" (W) x 13.5" (H) x 9.5" (D).
System weight: approximately 35 lbs. with a fully configured system.
Transport case measures 25” x 20” x 14”.
Shipping carton dimensions: 26.5" (L) x 17" (W) x 22" (H).
Shipping weight (includes transport case): approximately 55 lbs for a fully configured system.

Physical Specs

Input: AC 100 ~ 240 V, 50 ~ 60 Hz, full range (PFC).
Output: 650 watt power supply standard; upgrades available.

Electrical and Power

Temperature: Operating—0~50 °C (32~122 °F); non-operating— -20~60 °C (-4~140 °F).
Humidity: 5~95% @ 40 °C, non-condensing.
Altitude: Operating—15000 ft. Non-operating—40000 ft.
Shock: Operating—half-sine wave @ 15 G, 11 ms duration on ±x, ±y, ±z directions, 3 times per face, @ 20°C, 65% RH. Non-operating—half-sine wave @ 50 G, 11 ms duration on ±x, ±y, ±z directions, 3 times per face, @ 20°C, 65% RH.
Vibration: Operating—20-60 HZ, 0.075 mm sine wave sweep in XYZ directions for 0.5 hrs @ 20°C, 60% RH. Non-operating—10-50 Hz, 0.15 mm sine wave sweep in XYZ directions for 0.5 hrs. @ 20°C, 60% RH.

Environmental and Safety

Base Configuration

  • Enclosure
  • MPC-1700 portable chassis.
  • 17.3" LCD monitor, 1920x1080 resolution.
  • Detachable keyboard with touchpad.
  • Transport case.
  • Motherboard
  • Intel Z390 chipset LGA 1151 motherboard.
  • Processor
  • Intel Core i7-9700 Coffe Lake 3.0GHz 8-core processor.
  • Main Memory
  • 16GB dual channel DDR4 DRAM installed.
  • Graphics
  • Processor integrated Intel UHD Graphics.
  • LAN Connectivity
  • One 10/100/1000Mbps LAN controller.
  • Storage Device Controller
  • 6 x SATA 6Gb/s ports.
    1 x M.2 slot (Key M) supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280/ 22110 storage devices.
  • Installed Storage Devices
  • One 250GB SSD.
    One slim-type DVD +/- RW optical disk drive.
  • Audio
  • Realtek ALC892, 7.1 channels audio.
  • Input/Output
  • 1x PS/2 mouse/keyboard port.
    1x DVI port.
    1x VGA port.
    1x DisplayPort.
    1x USB 3.1 Type-A port.
    1x USB 3.1 Type-C port.
    2x USB 3.0 ports
    1x RJ-45 LAN port.
    7-channel audio I/O ports (5+1 audio jacks).
  • Expansion Slots
  • 2 PCI-E 3.0 x16 slots.
    2x PCI-E 3.0 x1 slots.
    1x M.2 slot with E key for Integrated Intel® Wireless-AC(CNVi) module only.
  • Operating System
  • No installed operating system.
  • Power Supply
  • 650-watt.
  • Price as Configured: $3200

Request Price Quotation With Other Options

Use this form to select your desired components for your MPC-1700 portable workstation. If the options don't address all of your requirements, please use the message field of the form to ask for options not available here. Options you select may require a different motherboard from that of the Base Configuration.

Note:

This is a build-to-order, noncancelable system and usually takes 4 - 6 weeks to ship after we receive your order.



Select Processor
Select Amount of Memory
Select Graphics Controller
Connectivity Options
Storage Options
Optical Disk Drive
Expansion Slots
Additional Input/Output Controllers
Select Operating System

Please let us know how to contact you.

Rugged portable computer MPC-1730 chassis construction is of aluminum alloy

  • Rugged portable computer MPC-1730
  • Rugged portable computer MPC-1730 aluminum alloy chassis supports ATX motherboards

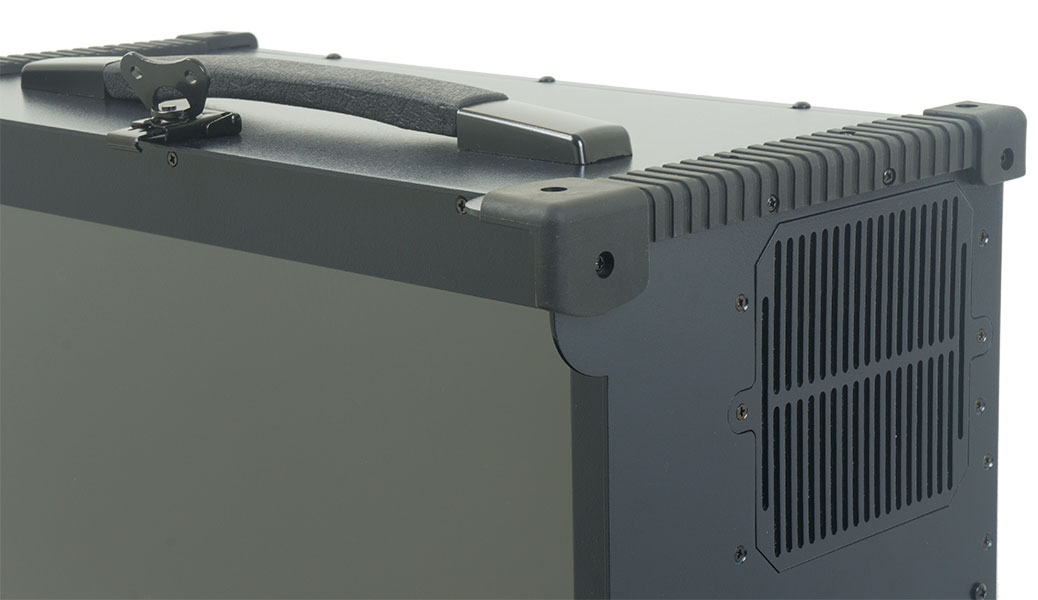

    MPC-1700 chassis details.
  • Rugged portable computer MPC-1730 supports multiple hard drives

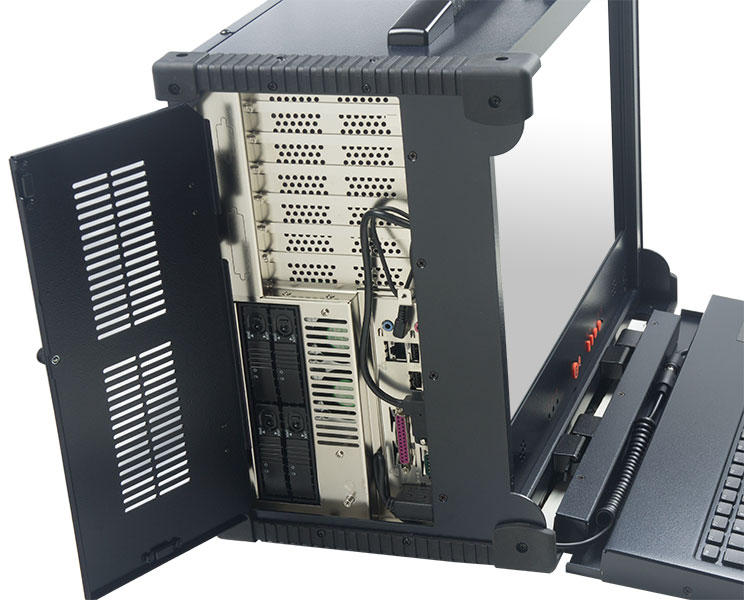

    MPC-1700 right side drive bays.
  • Rugged portable computer MPC-1730 keyboard

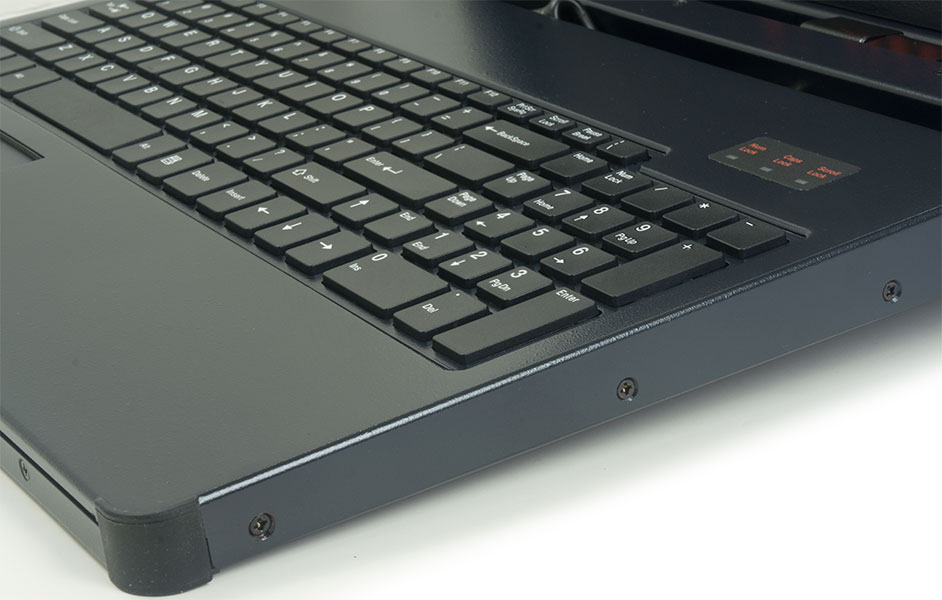

    MPC-1700 keyboard details. Full size keyboard with low-profile, low-travel, flat keycaps keys (chiclet style).
  • Rugged portable computer MPC-1730
    MPC-1700 with keyboard in closed position.
  • Rugged portable computer MPC-1730

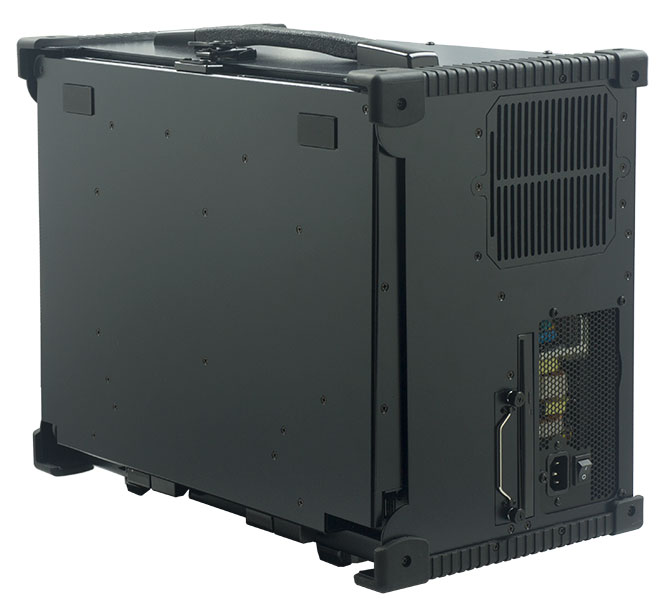

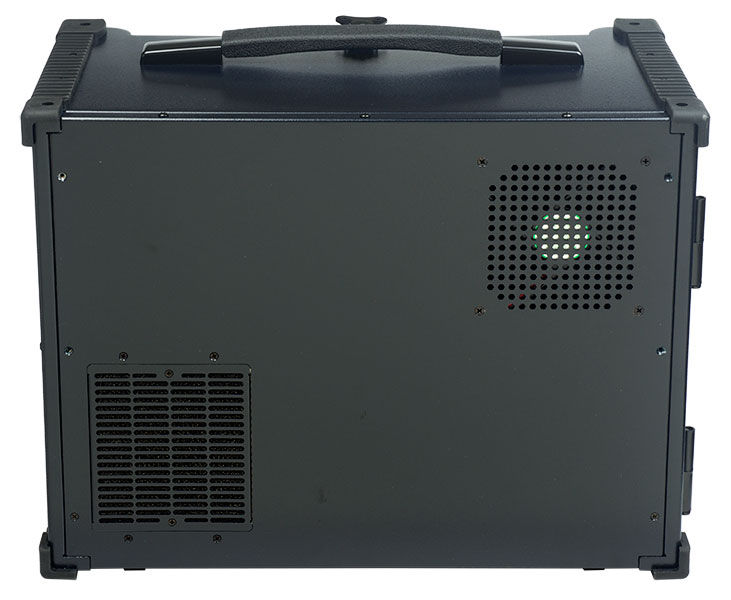

    MPC-1700 back side view.
  • Rugged portable computer MPC-1730

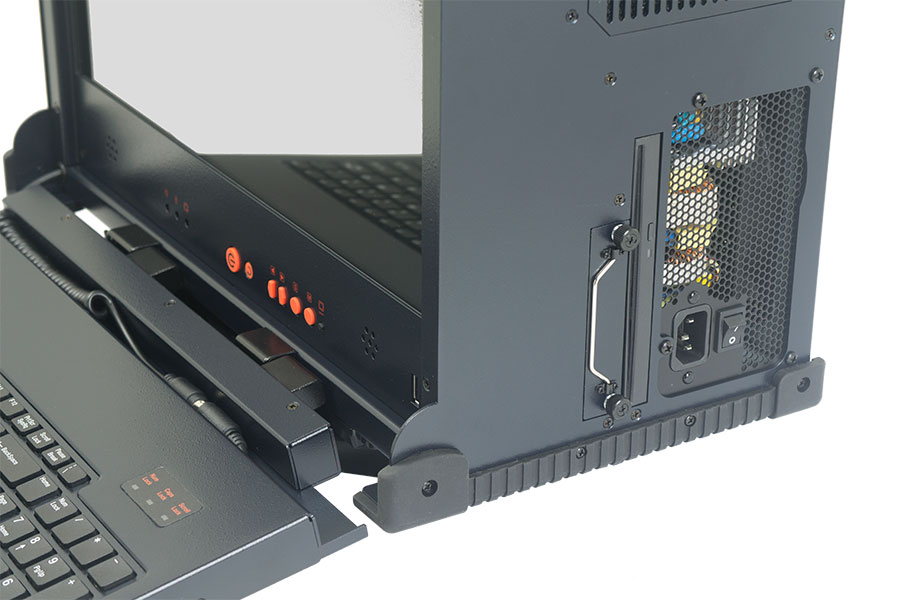

    MPC-1700 input-output ports and 5.25" drive bay.
