Industrial HMI system PPC-120 is IP-65 rated. Touch screen PC supports two PCI expansion slots. Panel computer for control interface, factory and machine automation, human machine interface.

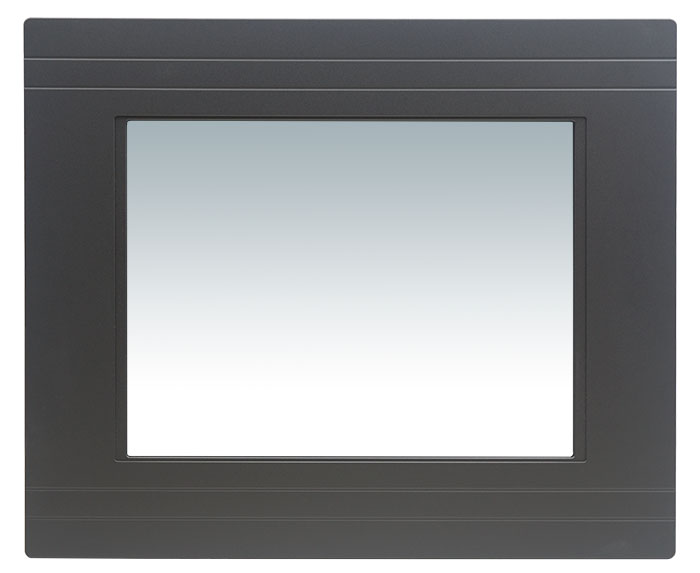

Panel PC with Intel 4th Generation Haswell CPU

The PPC-120E series is an industrial panel PC designed to serve as a human-machine interface (HMI) for integration into any space-constricted embedded applications. It provides full PC functionality within its compact chassis. Coupled with its multi-I/O and expansion capability, the PPC-120E series panel PC is ready to accommodate a wide range of PC peripherals for a host of applications such as operator interface, information terminals and point-of-service PC.

The PPC-120E is a major update of our PPC-120 series. It features an Intel 4th generation CPU based system board. Its resistive touch screens come in 15", 17" and 19" sizes. The front panel is IP-65 rated making it a great choice for operating in industrial environments.

Industrial panel PC PPC-120 has an Intel Core 2 Duo processor, two gigabit ethernet ports

Complete PC Input/Output Including Expansion Slots

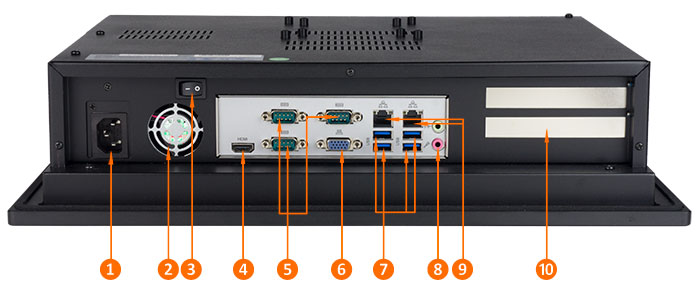

The PPC-120E series panel PC supports Intel Haswell processors. External I/O ports are shown here:

1. AC input.
2. Power supply fan.
3. Power on/off switch.
4. HDMI port for external monitor.
5. Three serial ports.
6. VGA port for external monitor.
7. Four USB 3.0 ports.
8. Audio ports.
9. Two 10/100/1000 Base-T ethernet ports.
10. Expansion slots supporting either two 32-bit PCI slots or one PCIe slot (optional).

Rugged HMI system for industrial control, panel PC PPC-120 touch screen computer comes with 2 PCI slots. Factory automation, industrial control automation, human machine interface.

PPC-120E is VESA and Panel Mountable

The PPC-120E series comes with panel-mounting brackets. Wall-mount, swing-arm-mount, pole-mount are also supported with VESA mounting holes on the back.

1. Chassis fan vents.
2. VESA mounting points.
3. Two disk drive bays supporting two 3.5" hard drives or mobile racks to install 2.5" SSD and hard drives.
4. Slim type optical disk drive bay.

Heavy duty steel housing with aluminum front bezel.
Aluminum front panel with seal is NEMA 4 (IP65) ingress protection rated.

Enclosure Construction

Screen Sizes and Features:
15" LCD: 1024 x 768 resolution (XGA), 250 nits.
17" LCD: 1280 x 1024 resolution (SXGA), 250 nits.
19" LCD: 1280 x 1024 resolution (SXGA), 350 nits.
24-bit color depth (16 million colors).
70 degrees up/down/left/right viewing angles (typical).
8ms response time (typical).

Flat Panel Display

Analog resistive touch screen.
RS-232 touch screen interface.
Input method: finger, gloved hand or touch stylus.
Optical transmittance: 83% ± 5%.
Touch activation force: Typically less than 125g.
Operating temperature: -10°C to 60°C, less than 90% RH.
Storage temperature: -40°C to 75°C, less than 90% RH.
High temperature and humidity operating: 60°C at 90% RH for 120 hours.
Surface durability: 3H or higher per ASTM-D3363
Touch Life:
Pen sliding: more than 500K times.
Pen hitting: more than 10M times.
Finger touch: more that 35M times.

Touch Screen

Mini-ITX main board supporting Intel LGA 1150 Core i7/i5/i3/Celeron Haswell processors.
Intel Q87 chipset.
2 204-pin DIMM sockets supports up to 16GB DDR3-1600 SDRAM.
CPU integrated Intel HD Graphics, supports DX 11.1, OGL4.0.
Dual Gigabit LAN.
Integrated Realtek ALC662 HD codec.
256 Segments, 0,1,2…255 Sec/Min watchdog timer.

I/O Ports:
3 DB-9 serial ports (Com 1, Com 2, and Com 3). All Com RS-232/422/485 Selectable via BIOS setting (default RS-232). All COMs 5V and 12V selectable via jumper setting (default no power).
4 USB 3.0 ports on I/O panel.
1 HDMI interface for external display.
1 VGA interface for external display.
1 line-out, 1 mic-in jacks.

Optional Expansion Slot Support:
2x 32-bit PCI slots or one PCIe slot supporting cards with maximum card length of approx. 9.5".

System Specs

Dimensions:
15”: 17.6" (448mm) x 14.6" (371mm) x 3.9" (100mm) [W x H x D].
17”: 19.1" (485.6mm) x 16.5" (418mm) x 4.1" (103mm) [W x H x D].
19”: 20.6" (524mm) x 17.7" (448.5mm) x 4.2" (106mm) [W x H x D].
Weight:
15"/17"/19" models weigh approximately 24/26/28 lbs respectively.

Physical Specs

Switch power supply.
Input: AC 100 ~ 127 V, 50 ~ 60 Hz. 200 ~ 240 V 50 ~ 60 Hz.
Output: 200 watts.

Electrical and Power

Operating temperature: 0 ~ 40°C (32 ~ 104°F) ambient w/ air flow
Storage temperature: -20 ~ 60°C
Humidity: 10% ~ 90%
Compliance: CE, FCC, RoHS.

Environmental and Safety

Configuration—15" Model PPC-120E-15

  • LCD
  • 15" LCD, aluminum front bezel.
    Resistive touch screen.
  • Processor
  • Intel Core i3 4330TE Haswell processor, 2.4GHz, 4M Cache.
  • Main Memory
  • 4GB installed.
  • Graphics
  • Integrated GMA950 graphics controller.
  • Installed Storage Devices
  • One 120 GB SATA SSD.
  • Price as Configured: $2095

Options

  • LCD
  • PPC-120E-17 with 17" LCD, resistive touch screen, aluminum front bezel.
    PPC-120E-19 with 19" LCD, resistive touch screen, aluminum front bezel.
  • Processor
  • Intel Core i3, i5, i7 Haswell processors (depends on availability).
  • Main Memory
  • Two 204-pin sockets, up to 16GB DDR3 SDRAM.
  • Storage Devices
  • 500GB, 750GB, 1TB SATA hard drive.
    128GB, 256GB, 500GB SSD.
    Slim type optical disk drive.
  • Connectivity
  • Wi-fi module.
  • Operating System
  • Microsoft® Windows® 7, 10.
  • Expansion Slot
  • One PCIe slot.
  • Two PCI slots.

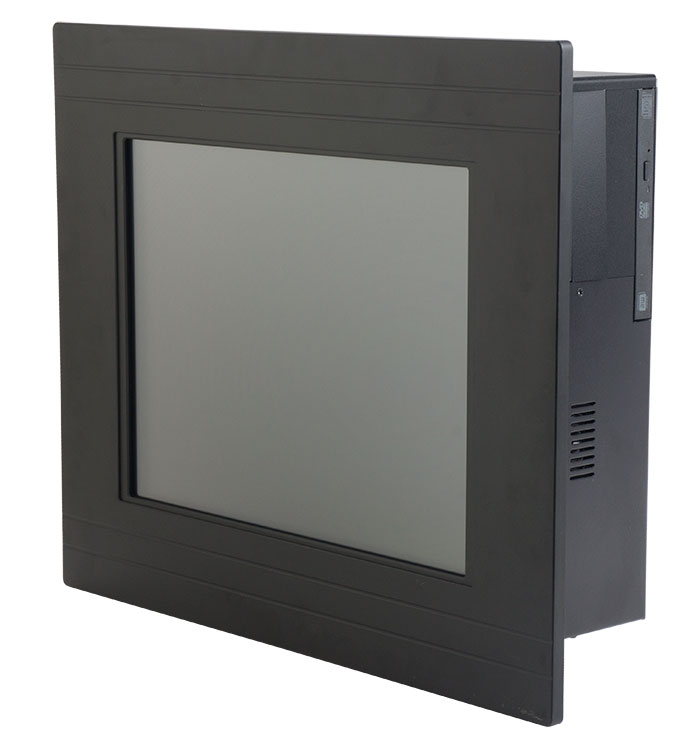

ppc120_gallery1

  • ppc120_gallery1
  • ppc120_gallery2

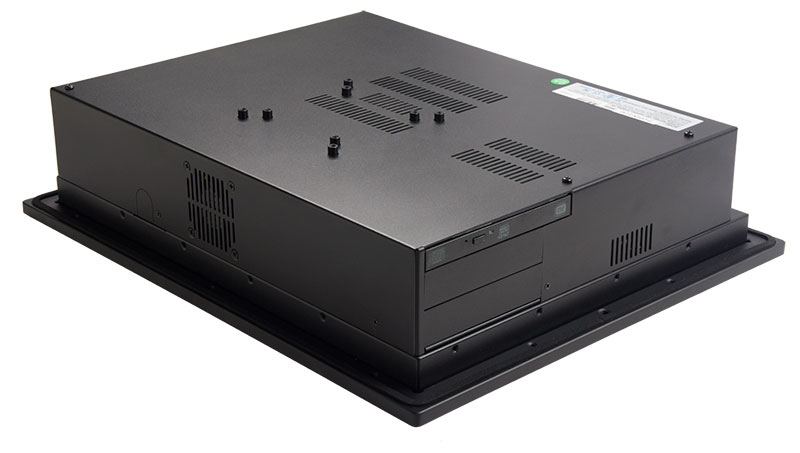

    PPC-120E back side view
  • ppc120_gallery3

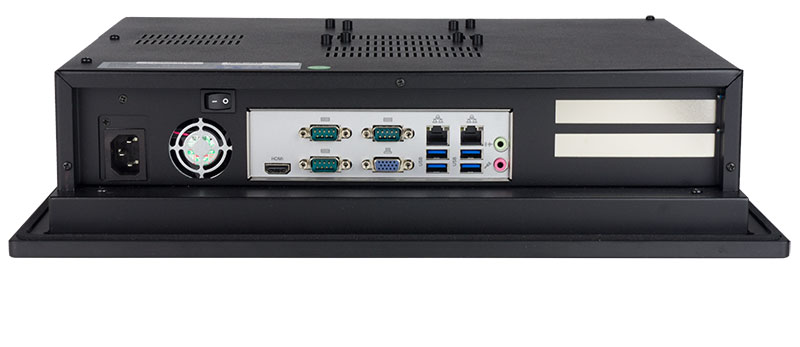

    PPC-120E I/O panel
  • ppc120_gallery4
    PPC-120E PCI expansion slots
