Mobile and Industrial Computing Solutions

RM-UX20 is a ruggedized industrial LCD with a 1600x1200 resolution, 4:3 aspect ratio IPC panel LCD monitor. It is designed to meet the demand for UXGA-class flat panel monitors in an industrial setting.

20" IPS Panel Rack Mount LCD

RM-UX20 is a rack mount LCD monitor ruggedized for industrial application environments. It has a 20 inch IPS panel LCD that delivers 1600x1200 resolution, high contrast ratio, wide viewing angles and wide color gamut.

Inside the RM-UX20, an IPS panel uses the latest in TFT LCD technology to deliver wide viewing angles that's horizontally and vertically symmetrical at 178 degrees. And with its 800:1 contrast ratio, you'll be able to distinguish the subtle shades of color or gray in your graphics images for more accurate work.

An on-screen display (OSD) menu using four front-panel-mounted control buttons let's you adjust the display for optimum viewing..

RM-UX20 8U rack mount industrial flat panel monitor is ruggedized, sports a metal bezel and metal housing, supports VGA or DVI inputs.

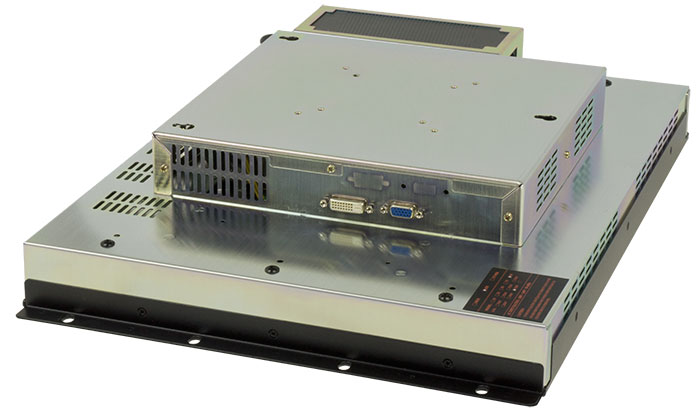

DVI and VGA Video Input Connectors

The RM-UX20 is industrially hardened with a 8U rack high metal housing for rack or VESA mounting. The LCD panel is protected by a 2mm shatter resistant glass.

On the back side of the housing, there is a VGA and a DVI port for your video signals.

Industrial rack mount 8U ruggedized flat panel display uses an external AC adapter power supply. It has an in-plane-switching (IPS) LCD with 1600x1200 resolution, wide viewing angles. It can be rack mounted, VESA mounted.

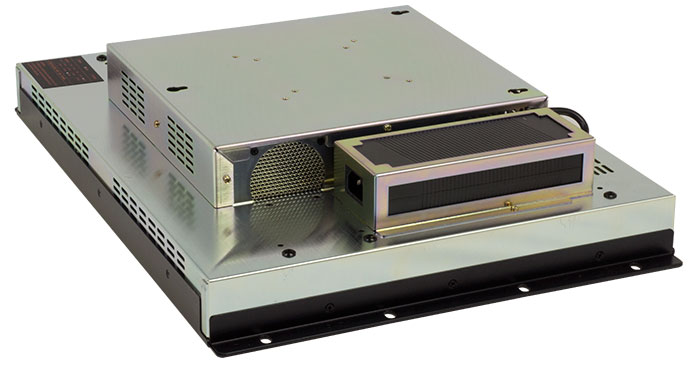

AC Adapter Power Supply

The RM-UX20 uses an externally attached AC adapter power supply.

8U rack mount LCD monitor.
Rugged metal enclosure. Metal front bezel.
Constructed for rack mount, wall mount. VESA standard mounting patterns of 75mm and 100mm.

Construction

Display Size: 20.1-inch, 4:3 aspect ratio LCD (measured diagonally).
LCD Panel: IPS (in-plane-switching) panel.
Resolution: 1600 x 1200 pixels.
Color Depth: 24-bit color depth (16 million colors).
Pixel Pitch (H/V mm): 0.255 x 0.255.
Active Area (mm): 408 x 306.
Contrast Ratio: 800:1.
Brightness (cd/m²): 300.
Response Time (gray to gray, ms): 8ms (avg), 14ms (max).
View Angles (degrees): 178/178 (v/h) .
LCD Panel Interface: 2 channel LVDS .
LCD Backlight Type: Edge light backlighting, 6 CCFL (cold cathode flourescent lamp) tubes..
External Interface: VGA or DVI.
Includes 6-feet video cable with D-Sub 15-pin VGA connector, or optional DVI cable.

Flat Panel Display

Dimensions (drawer): 19" (W) x 14" (H) x 4.125" (D).
Weight: 18 lbs.

Physical Specs

Input: universal 100 ~ 240 Vac / 47 ~ 63 Hz Input.
Output: +12V / 0 ~ 9A.
Efficiency ： Eff (av) ≧ 87%
Safety ： CUL / UL / GS / PSE / BSMI / RCM
EMI ： CE / FCC Class B ； Conduction & Radiation Met.
Protection ： OVP (Over Voltage Protection), SCP (Short Circuit Protection), OCP (Over Current Protection),OTP (Over Temperature Protection)

Electrical and Power

Operating temperature:32 ~ 122°F
Storage temperature: -40 ~ 158°F
Humidity: 10% ~ 90% non-condensing.

Environmental and Safety

RM-UX20 rackmount LCD monitor has ruggedized metal chassis and front bezel. It is 8U rack high and is ruggedized for industrial rackmount environments. The 20 inch LCD sports an IPS panel for wide viewing angles and great color accuracy.

  • RM-UX20 rugged industrial rackmount LCD monitor. UXGA resolution with 1600x1200 pixels.
  • RM-UX20 rackmount and VESA mount industrial LCD monitor with a 20 inch IPS panel LCD monitor.

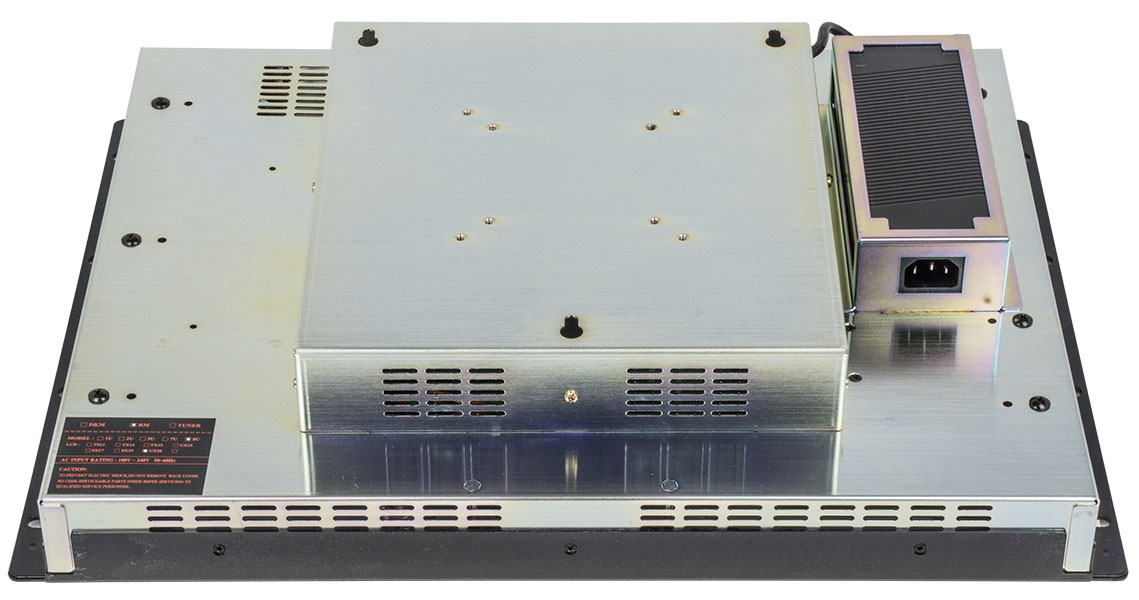

    RM-UX20 metal housing back side view: VESA and wall mounting holes, ac adapter.
  • RM-UX20 8U rack mount rugged industrial flat panel display. 1600x1200 resolution.

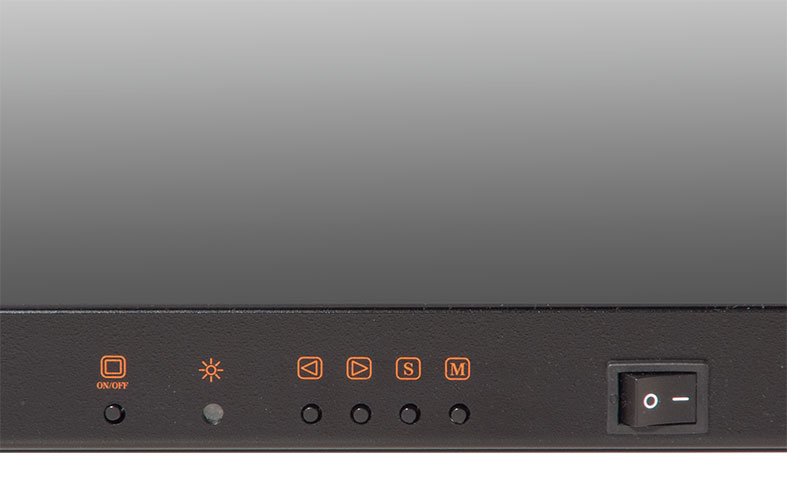

    RM-UX20 front bezel: LCD backlight on/off button, status indicator LED, OSD menu control buttons, power on/off switch.

Request Price Quotation

Use this form to request a quotation for the RM-UX20.

Quantity

Please let us know how to contact you.



How To Buy

Contemporay MicroSystems accepts the following payment methods:

  • Purchase Orders—We accept academic, research institution, local, state and federal government agencies, and corporate purchase orders. Standard terms is net 30.
  • Credit Cards—We accept payment with credit cards. Please call (626)487-7034 to order. Visa, Mastercard, American Express are accepted. We do not accept international credit cards at this time. However, if you reside outside of the United States and Canada, you can email us your purchasing and shipping requirements. We'll prepare a proforma invoice as acknowledgement.
  • Resale discounts are available. Please send your request using the Request Price Quotation form. To qualify for reseller discount, a resale certificate/permit/ID is required.

Lead Time

This product usually ships within 5 business days after we receive your order.

Price (QTY One)

RM-UX20: $1325.00
