RM-SX17T
Industrial Rackmount LCD Monitor with TV

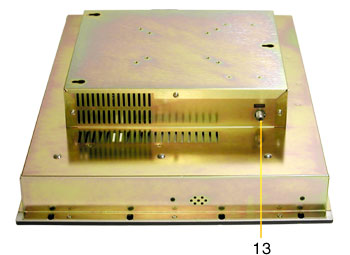

Back View of Connectors

1. Back panel VESA standard mounting holes.
2. Back panel mounting holes for wall mounting.
3. D-Sub 15 VGA male (PC video in).
4. Audio in jack (RCA) for left audio channel.
5. Audio in jack (RCA) for right audio channel.
6. Audio in (3.5mm stereo jack).
7. D-Sub 15 VGA female (video out for external monitor 1).
8. Video in jack (RCA) for composite video.
9. S-Video in socket.
10. D-Sub 15 VGA female (video out for RM-SX17T LCD or external moniotr 2).
11. AC power in.
12. Ventilation fan.
13. Coaxial connector for CATV (75 ohm impedance F type connector).

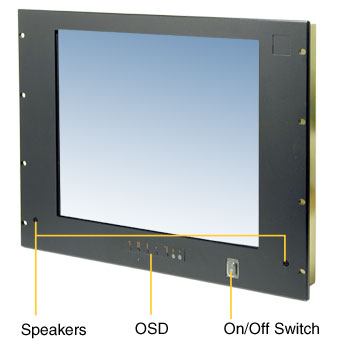

Front View

TV Remote Control

The 1/4" thick TV tuner remote control also duplicates all of the functions of the On-Screen Display (OSD) menu for image adjustments.
