Industrial
LCD monitor with TV tuner. Wide color
gamut, wide viewing angles. Rugged
construction for rack mount and wall
mount.
17" SXGA
resolution @ 1280 x 1024 pixels. |
 |
Note: This is an OEM/ODM product. The description, features,
specifications, and mechanical drawings are presented for reference only. It serves
as a starting point for development and prototyping considerations. LCD panels
with differing characteristcs may be used in accordance with customer's final
requirements.

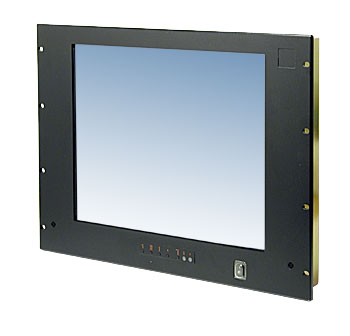

Introducing a high resolution
LCD with the latest in TFT technology, the
RM-SX17T also doubles as a TV screen with
its built-in TV tuner. The RM-SX17T is a
17" LCD TV monitor
constructed of a metal enclosure that can
be rack, panel or wall mounted to suit your
application needs. It's an ideal display
terminal for audio/video applications and
monitor for industrial machines thanks to
its lower power consumption and EMI free
technology.
RM-SX17T has a high resolution
of 1280 x 1024 pixels (SXGA) so you can
put more information on screen. The RM-SX17T
uses active matrix technology that provides
a bright (250 cd/m2) and high
constrast (350:1 contrast ratio) image.
A fast response time of 25ms means that
you'll notice little blurring viewing fast
moving animations and video images. The
RM-SX17T provides comfortable viewing with
are 150o horizontal and 125o
vertical viewing angles. An on-screen display
(OSD) menu let's you adjust the display
for optimum viewing.
Besides using the RM-SX17T
as a computer monitor, its built-in TV tuner,
stereo speakers and multiple video input
jacks (coaxial cable, S-Video, composite
video, VGA) let you connect the monitor
to a wide range of video sources. You can
switch video source, change TV channels,
and adjust audio volume using the included
remote control.
RM-SX17T measures 19"
W x 14" (8 rack units high). The corrosion
resistant aluminum front bezel conforms
with standard 19" rack cabinet mounting
pattern. VESA compliant mounting holes are
also available to facilitate wall mounting
or attaching to VESA compliant swing arms.
With wide viewing, high
contrast and bright display, the RM-SX17T
provides sharper, brighter, and more vivid
image for all your applications.
|
