RM-WX17T
Wide Format LCD-TV Rackmount Monitor

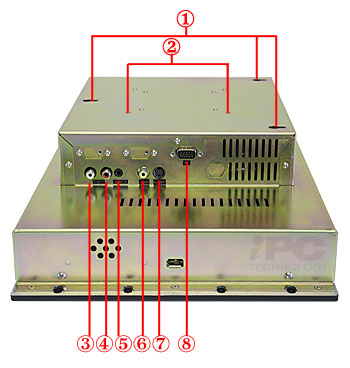

Right Side View

1. Back panel mounting holes for wall mounting.
2. Back panel VESA standard mounting holes.
3. Audio in jack (RCA) for left audio channel.
4. Audio in jack (RCA) for right audio channel.
5. Audio in (3.5mm stereo jack).
6. Video in jack (RCA) for composite video.
7. S-Video in socket.
8. D-Sub 15 VGA port.

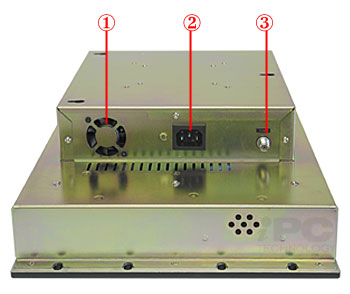

Left Side View

1. Ventilation fan.
2. AC power in.
3. Coaxial connector for CATV (75 ohm impedance F type connector).

TV Remote Control

The 1/4" thick TV tuner remote control also duplicates all of the functions of the On-Screen Display (OSD) menu for image adjustments.
