Industrial LCD monitor
with TV tuner. Wide screen format, wide color
gamut, wide viewing angles.
Rugged construction
for rack mount and wall mount. 17" WXGA
resolution @ 1280 x 768 pixels. |
 |
Note: This is an OEM/ODM product. The description, features,
specifications, and mechanical drawings are presented for reference only. It serves
as a starting point for development and prototyping considerations. LCD panels
with differing characteristcs may be used in accordance with customer's final
requirements.

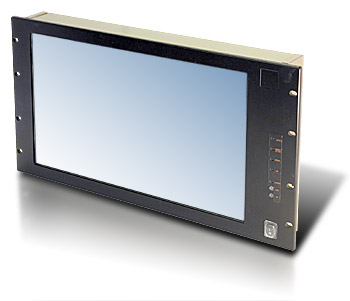

RM-WX17T is a 17"
wide screen LCD-TV using the latest in TFT
LCD technology. It is industrially hardened
with a 6U rack high (19" W x 10.5"
H) aluminum/metal housing for rack, panel
or wall mounting. With advanced wide viewing,
lower power consumption and EMI free technology,
the RM-WX17T provides sharper, brighter,
and more vivid image for all your applications.
The RM-WX17T doubles as a TV monitor
with its built-in TV tuner. Multiple video
input jacks (S-Video, composite video, VGA)
let's you connect the monitor to a wide
range of video sources.RM-WX17T has a native
resolution of 1280 x 768 pixels (wide XGA).
You have a wide aspect ratio screen that's
25% larger than an XGA (1024 x 768) monitor.
With the widened perspective you can work
more and scroll less, because you can put
more information on screen instead of cluttering
it with menus and tool bars. The RM-WX17T
uses active matrix technology that provides
450 cd/m2 brightness and 450:1 contrast
ratio. An on-screen display (OSD) menu let's
you adjust the display for optimum viewing.
The front bezel is constructed
of corrosion resistant aluminum. Mounting
flangs on the front bezel let's you rack-
or panel-mount the monitor. The back enclosure
is heavy duty sheet metal with VESA standard
mounting interface for wall or swing arm
mounts.
|
