PPC-110 sereis Panel PC with touch screen LCD

The PPC-110 is a IP-65 rated and RoHS compliant industrial panel PC with touch screen LCD monitor. Designed to serve as a friendly human-machine interface (HMI)for easy integration into any space-constricted embedded applications, the PPC-110 industrial panel PC provides full PC functionality. Multi-I/O and expansion capability lets the PPC-110 panel PC interface with other applications. The PPC-100 panel PC supports touch screen LCD for user interface. It accommodates a wide range of PC peripherals for a host of applications such as operator panel PC, information panel computer terminals, point-of-sales and point-of-service panel mount PC.

Industrial Touch Screen Panel PC

PPC-120 series RoHS Panel Computer with Touch Screen LCD Monitor

Panel mounting the PPC-120 using the supplied L-brackets

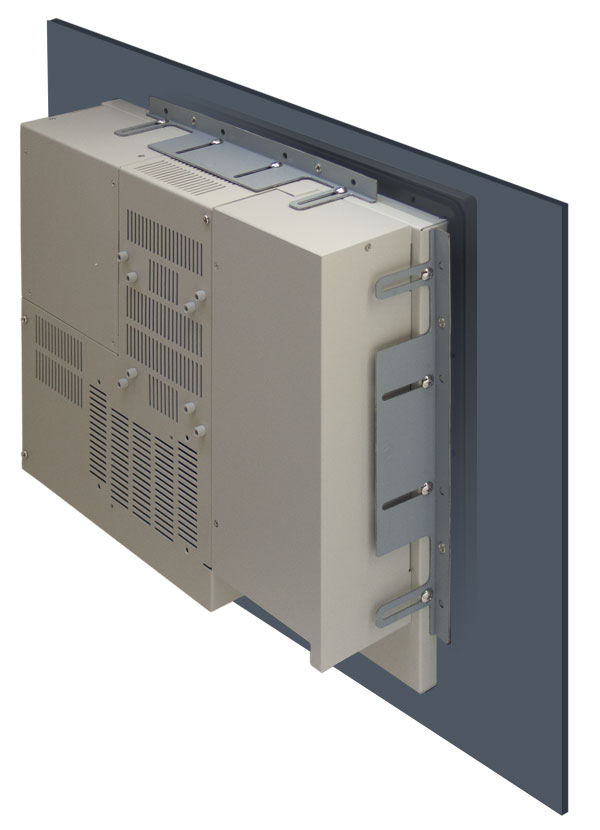

This is one of the schemes to panel-mount the PPC-120 using the L-brackets that come with the product. Three L-brackets as shown are included with your PPC-120. They are designed so that the system chassis is fastened to the wide side, and the narrow side is for fastening to the panel/kiosk.

touch screen panel workstation PPC-100
  1. On the narrow side of the L-bracket, these thru holes can be used for fastening the L-brackets to the panel.
  2. Alternately, you can use these threaded studs to fasten the L-brackets to the panel.
  3. The system chassis is fastened to the wide side of the L-bracket by screws that are inserted through these slots. The slots line up with threaded screw holes on the top and sides of the PPC-120, and they accomodate different panel thickness.touch screen panel workstation PPC-100
  4. The L-brackets are shown attached to the top and two sides of the PPC-120 chassis.
