Server rack LCD console with 8-port USB KVM switches

The SMK-880 series rack LCD console with 8-port USB KVM switch lets you monitor rackmount servers using a single monitor and USB keyboard mouse. SMK-880 rack LCD console features a 17 inch flip-up flat panel LCD monitor, USB keyboard and touchpad mouse. USB keyboard and mouse are hot-pluggable, easily recognized and configured by the operating system, and the PC usually provides 4 or more USB ports for peripheral devices. The 8-port USB KVM switches supports USB keyboard and mouse interface.

SMK-880S17 for USB Keyboard and Mouse.

This model is no longer available. It is replaced by the SMK-980S17

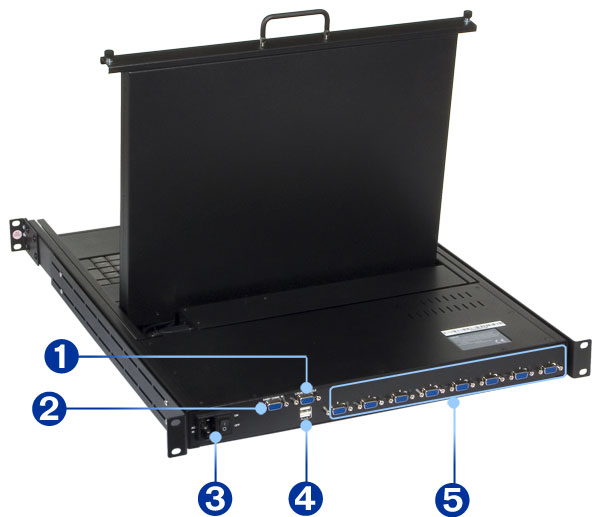

8-port USB KVM switch server LCD console back side view
  1. Daisy-chain DB-15 connector for daisy-chaining additional KVM switch to local console. (Please ask us about availability of compatible KVM switches for daisy-chaining to the SMK-880S17)
  2. Daisy-chain input connector (DB-15 socket).
  3. AC input and power on/off switch.
  4. 2 USB 2.0 ports for external USB devices.
  5. 8 DB-15 sockets for KVM signals from connected PCs.
