CompactPCI portable workstation with 6U 6-slot CPCI backplane

The CPCI-6615 is a self-contained, CompactPCI portable workstation. The CPCI chassis features a 6U card cage that includes a 6-slot CompactPCI backplane. The CompactPCI portable workstation provides a totally integrated and cost-effective portable CompactPCI chassis ready to be deployed in industrial environments such as telecom field service and test applications.

The CPCI backplane has a H.110 CT bus and features six CompactPCI slots - one system slot and five peripheral slots. The CompactPCI workstation controller is an Intel Pentium M CPU single board computer.

CPCI-6615 Is No Longer Available

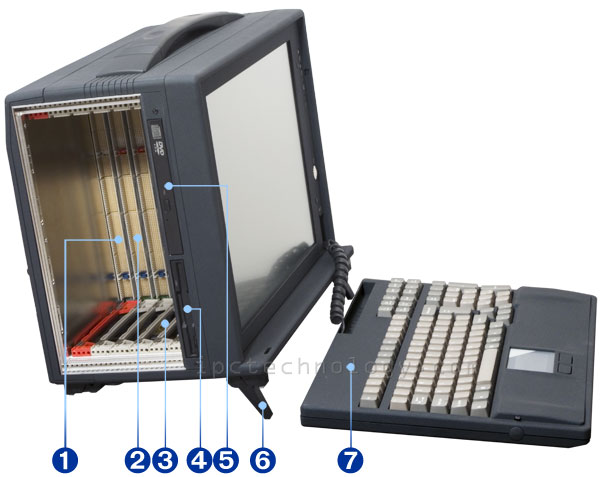

portable CPCI workstation with 6U 6-slot, H.110 CT bus backplane
  1. CompactPCI backplane - system slot.
  2. CompactPCI backplane - peripheral slot (5 available slots).
  3. 113 cfm cooling fan (located below the slots).
  4. Notebook-type 3.5" floppy disk drive.
  5. Notebook-type optical disc drive.
  6. Chassis tilt-up feet.
  7. Fold-down keyboard with integrated touchpad pointing device.
